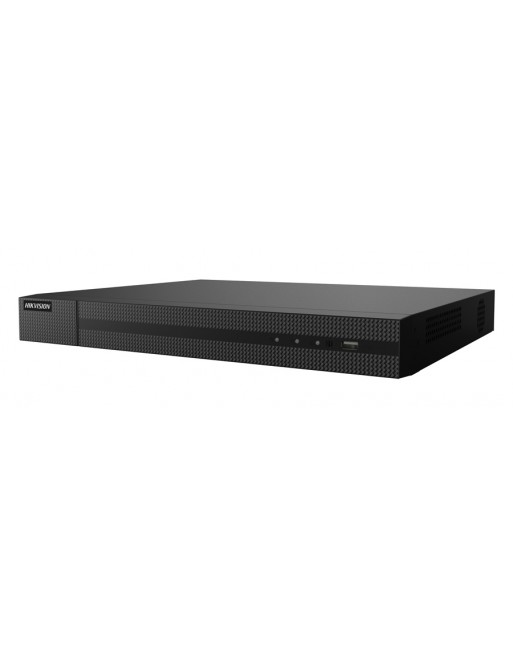

HIKVISION NVR καταγραφικό HiWatch HWN-4216MH, H.264+, 16 κανάλια
Καταγραφικό NVR της σειράς HiWatch από την HIKVISION. Υποστηρίζει έως και 16 κανάλια δικτυακών IP καμερών με ανάλυση εγγραφής έως 8MP και κωδικοποίηση βίντεο H.264+. Επιπλέον υποστηρίζει HDD έως 8ΤΒ.
-H.265+/H.265/H.264+/H.264 video compression
-Up to 160Mbps incoming bandwidth and 80 Mbps outgoing bandwidth
-Up to 16-ch IP network camera inputs, up to 8 MP resolution
-Up to 1-ch at 8MP or 5-ch at 1080p decoding capacity
-Provide simultaneous HDMI and VGA outputs
-HDMI video output at up to 4K resolution
-2 SATA interface (up to 8 TB capacity per HDD)
-Smart search for the selected area in the video and smart playback to improve the playback efficiency
-Support multiple VCA (Video Content Analytics) events
-Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
-1 self-adaptive 10/100/1000 Mbps Ethernet interface
-Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
-Live view from smart device or Internet
Τεχνικά χαρακτηριστικά
IP video input: 16-ch, Up to 8 MP resolution
Incoming bandwidth: 160 Mbps
Outgoing bandwidth: 80 Mbps
HDMI output: 1-ch, 4K (4096x2160)/30Hz, 4K (3840x2160)/30Hz, 2K (2560x1440)/60Hz,
1920x1080/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA output: 1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video output mode: HDMI/VGA simultaneous output
CVBS output: N/A
Audio output: 1-ch, RCA (Linear, 1 KΩ)
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding format: H.265+/H.265/H.264+/H.264
Recording resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback: 16-ch
Capability: 1-ch at 8 MP (30 fps) / 5-ch at 1080p (30 fps)
Stream type: Video, Video & Audio
Audio compression: G.711ulaw/G.711alaw/G.722/G.726
Remote connection 64
Network protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network interface: 1, RJ-45 10/100/1000 Mbps selfadaptive Ethernet interface
SATA: 2 SATA interfaces
Capacity: Up to 8 TB capacity for each disk
USB interface: Front panel: 1x USB 2.0; Rear panel: 1x USB 2.0
Power supply: 12 VDC, 3.33 A
Consumption (without HDD): = 15 W
Working temperature: -10°C to 55°C
Working humidity: 10% to 90%
Dimension (WxDxH): 385 x 315 x 52 mm
Weight (without HDD): = 1.8 kg

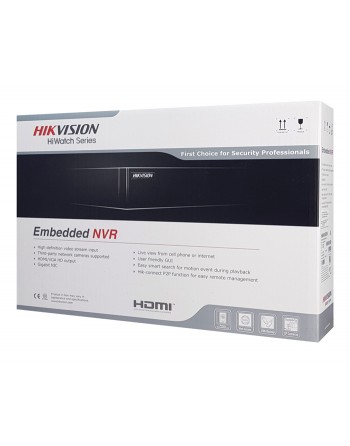

Περιεχόμενα συσκευασίας
NVR καταγραφικό
Ενσύρματο ποντίκι
Τροφοδοτικό
Καλώδια σύνδεσης
Βίδες
Εγχειρίδιο χρήσης
