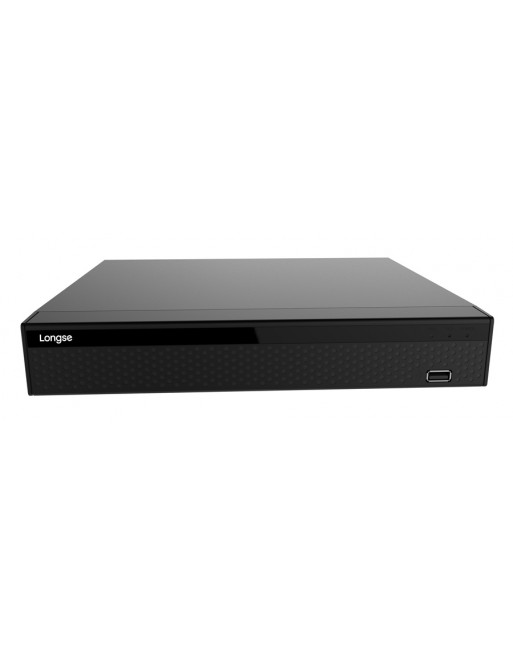

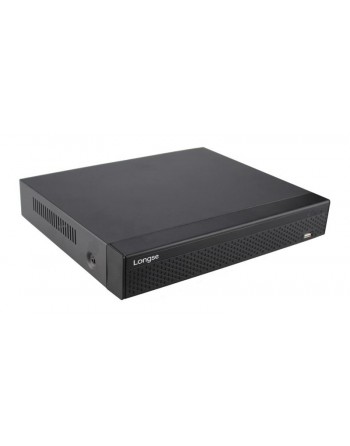

LONGSE XVR υβριδικό καταγραφικό XVRDA2116D, H.265/H.264, 16 κανάλια
Υβριδικό XVR καταγραφικό 5 σε 1 (AHD, CVI, TVI, IP, Analog), με υποστήριξη έως και 16 καναλιών HD ή 16 καναλιών IP. Επιπλέον υποστηρίζει ανάλυση καταγραφής HD 5MP και IP 5MP αλλά και HDD έως 8ΤΒ.
Τα καταγραφικά της Longse αποτελούν προϊόντα τεχνολογικής αιχμής, κατασκευάζονται από ποιοτικά υλικά και με αυστηρά κριτήρια ποιότητας, ώστε να λειτουργούν αξιόπιστα και απροβλημάτιστα, προσφέροντας σιγουριά και ασφάλεια
-support AHD/CVI/TVI/IP/Analog camera input
-up to HD 5MP and IP 5MP resolution recording
-support HD output, VGA and CVBS video output
-support max. 16CH HD or 16CH IP camera input
-support 1 SATA up to 8TB capacity
Συμβατές εφαρμογές:
Android
https://play.google.com/store/apps/details?id=com.gzch.lsplat.bitdog&hl=el
IOS
https://apps.apple.com/us/app/bitvision/id1419463554
PC
http://www.herospeed.net/en/index.php?m=content&c=index&a=lists&catid=10
WEB Browser
www.bitvision.app
Τεχνικά χαρακτηριστικά
System:
Main Processor: HI3521DV200
Operating System: Embedded LINUX
Video:
Input: Normal Mode: Analog: 16*(TVI/AHD: 5M @12fps; AHD/TVI/CVI: 4M @15fps; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H) Analog+Network: 2*Analog(5MP)+14*network(MAX 8MP),4*Analog(5MP)+12*network(MAX 8MP),6*Analog(5MP)+10*network(MAX 8MP),8*Analog(5MP)+8*network(MAX 8MP),10*Analog(5MP)+6*network(MAX 8MP),12*Analog(5MP)+4*network(MAX 8MP),14*Analog(5MP)+2*network(MAX 8MP) Network: 16*8MP/5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ?80M)

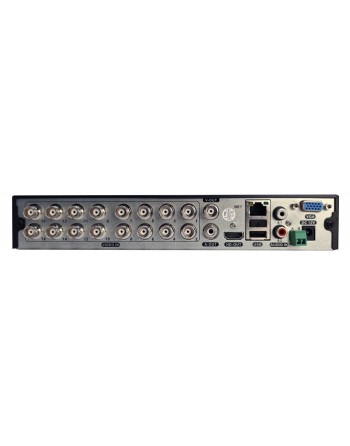

Input: 16CH BNC
Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output: 1HD, 1VGA, 1CVBS
Audio:
Input: 2 ChannelRCA,support AOC
Two-way Audio: NO
Output: 1 Channel, RCA
Alarm:
Sensor Input: NO
Output: NO
Motion Detection: 16 Channel
Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)
Email Alarm: Send Image to The Designated E-mail
PTZ:
Interface: RS485
Protocol: Pelco-D, Pelco-P
Baud Rate: 110~921600
Address: 0~255
Display:
VGA: Resolution: 1920 x 1080P /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz,1024 x 768 /60Hz
HD Output: Resolution: 3840x2160 1920x1080 1280x1024 1280x720 1024x768
Display Split: 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
Privacy Masking: 3 Rectangular Zones (Each camera)
OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording:
Video Compression: H.265/H.265+/H.264/H.264+
Audio Compression: G.711u/G.711a/AAC
Resolution: 5MP_Lite(1296x1944), 4MP_Lite(1280x1440), 3MP_Lite(1024x1536), 1080N(960x1080),720P(1280x720), 960H(P:960x576/N:960x480)
Video Quality: Lowest/Low/Ordinary/Good/Better/Best
Record Rate: Analog: PAL: 5MP_Lite(1296x1944 16*6fps), 4MP_Lite(1280x1440 16*8fps),3MP_Lite(1024x1536 16*10fps),1080N(960x1080 16*15fps), 720P(1280x720 16*15fps), 960H(960x576 16*25fps) NTSC:5MP_Lite(1296x1944 16*6fps), 4MP_Lite(1280x1440 16*8fps), 3MP_Lite(1024x1536 16*10fps), 1080N(960x1080 16*15fps), 720P(1280x720 16*15fps), 960H(960x576 16*25fps) Pure IP(H.265): PAL :8MP @9x25fps, 5MP @12x25fps, 4MP @16x25fps, 3MP @16x25fps, 1080P @16x25fps, 960P @16x25fps, 720P @16x25fps, D1 @16x25fps NTSC:8MP @9x30fp, 5MP @12x30fps,4MP @16x30fps, 3MP @16x30fps, 1080P @16x30fps, 960P @16x30fps, 720P @16x30fps, D1 @16x30fps
Record Mode: Manual\Timer\Motion Detection
Playback & Backup:
Decode Capability: 4CH 1080P @30fps
Sync Playback: Pure Analog: 16CH 960H @25fps, 16CH 720P @15fps, 16CH 1080N @15fps, 16CH 5M_LITE @6fps, 16CH 4M_LITE @8fps, 16CH 3M_LITE @10fps, Mixture mode: 4CH D1 @25fps, 4CH 1080P @25fps, 1CH 8MP @30fps, Pure Network: 4CH D1 @25fps, 4CH 1080P @25fps, 1CH 8MP @30fps
Remote Playback: 4 Channel / 1Channel
Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions: Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
Smart Phone: Playback 4 Channel
Backup Mode: USB Device(with fomat FAT 32 )/Network/FTP
Network:
Interface: 1 RJ45 10M/100M Adaptive Ethernet Interface
Network Functions TCP/IP, HTTP, UPnP, DNS, NTP, SMTP,DHCP, FTP, DDNS, RTP, RTSP, RTCP
DDNS Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET, EASY_PLANET
Web Browser: Edge, IE8-11, Google Chrome, Firefox, Safari
CMS Software: Support Windows 7/ Windows 8/Windows 10
Extra Stream: CIF/D1(1-30fps)
Smart Phone: iPhone, ipad, Android, Android pad
Hard Disk Driver:
Interface Type: 1 SATA Interface
Capacity: 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)
General:
Language: Simplified Chinese, Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese, Japanese
UTC Control: YES
USB Interface: 2 USB 2.0 Interfaces
Power consumption: DC 12V/2A ?6W (Without Hard Disk)
Working Environment: -10~55°C/10~90%
Dimension (WxDxH): 260x215x43(mm)
Weight: 2kg (Without HDD)
Περιεχόμενα συσκευασίας
XVR καταγραφικό
Ενσύρματο ποντίκι
Αντάπτορας τροφοδοσίας
Βίδες
Εγχειρίδιο χρήσης
