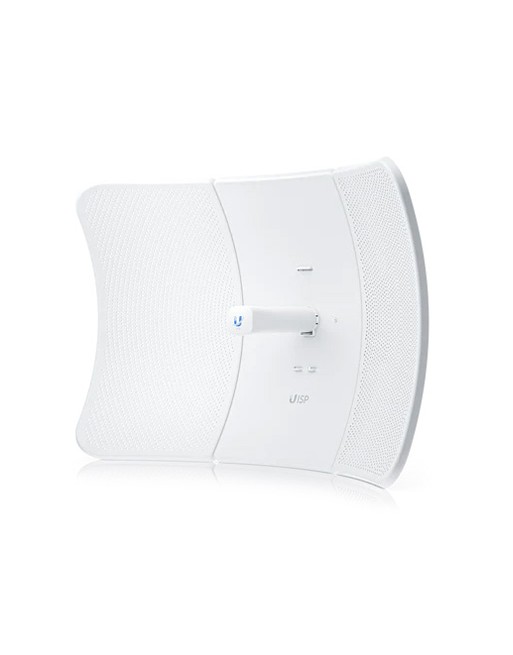

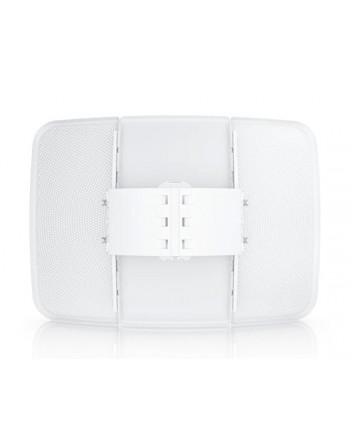

UBIQUITI PtMP CPE LTU-XR, 550 Mbps, 5GHz, IPX6

Το LTU-XR είναι ένα υψηλής απόδοσης Point-to-Multipoint (PtMP) CPE για ασύρματους ISPs που μπορεί να φτάσει σε ταχύτητα ροής έως και 550 Mbps. Επιπλέον, διευκολύνει την ανεξάρτητη μετάδοση και λαμβάνει channel frequency configurations οπουδήποτε εντός του radio band για να αποφθεχθούν οι τοπικές παρεμβολές και να εξασφαλιστεί ανώτερη απόδοση. Είναι εξοπλισμένο με Bluetooth management radio, ώστε να είναι εύκολο να ρυθμιστεί και να διαμορφωθεί με την εφαρμογή UISP Mobile.

-Proprietary Ubiquiti LTU core processor
-Long-range, 29 dBi antenna with InnerFeed technology
-High data and performance rate (1024 QAM)
-Link range up to 35 km
-Channel width flexibility (10/20/30/40/50 MHz bandwidth)
-Central configuration management from the AP side
-Frequency splitting
-Router mode support
-Integrated GPS
-Link planning support via ISP Design Center
-Quick, Bluetooth-powered setup with the UISP Mobile app

Τεχνικά χαρακτηριστικά
Hardware
Networking interfaces: (1) GbE RJ45 port
Button: Factory reset
LEDs: Power/ethernet
RF connections: Internal
Max. power consumption: 8.5W
Power method: Passive PoE 2-pair (4, 5+; 7, 8-)
Power supply: 24VDC, 0.5A Gigabit PoE adapter (included)
Supported voltage range: 22 to 26VDC
Operating temperature: -40 to 55°C
Operating humidity: 5 to 95% non-condensing

System
Maximum throughput: 550 Mbps
Encryption: WPA2-PSK (AES)
Uplink/downlink ratio: 25/75, 33/67, 50/50

Software
OS: airOS®
Modes: PtMP CPE only
Services: SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities: airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation
Auto distance adjustment: Yes
Auto power adjustment: Yes
Network: Router mode
Security: Yes
Statical reporting: Yes
Management interface: Bluetooth management for easy setup over UISP App, WEB UI
Minimum software requirements: Modern Web browser or Android/iOS smartphone

RF
Operating frequency*: 5.15 to 5.95 GHz *Depends on regulatory region.
Max. conducted TX power: 25 dBm
Channel bandwidth: 10/20/30/40/50 MHz
Antenna Gain: 29 dBi
Isolation: 20 dB
Beamwidth: HPOL: 3 dB: 5.5°, 6 dB: 7.5°, VPOL: 3 dB: 5.5°, 6 dB: 7.5°, Elevation: 3 dB: 5.5°, 6 dB: 7.5°
Electrical downtilt: 0°

Mechanical
Dimensions: 747 x 525 x 347 mm
Weight: 3.2 kg (7.06 lb)
Enclosure materials: Aluminum alloy, UV stabilized polycarbonate
Mount material: UV stabilized polycarbonate
Mount: Integrated pole mount (included), Pole compatibility: Φ35-60 mm
Wind loading: 1100 N at 200 km/h (247.29 lbf at 125 mph)
Weatherproofing: IPX6

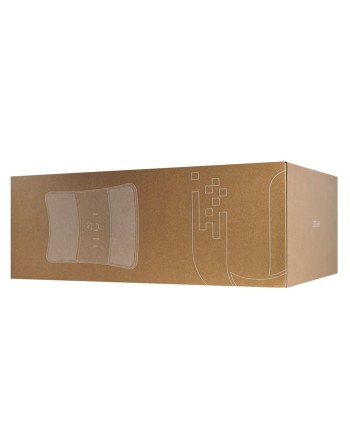

Περιεχόμενα συσκευασίας
Reflection panels
Pivot panels
LTU XR InnerFeed
Rear housing
Mounting bracket
Hardware kit
Metal straps
Gigabit PoE adapter (24V, 0.5A)
