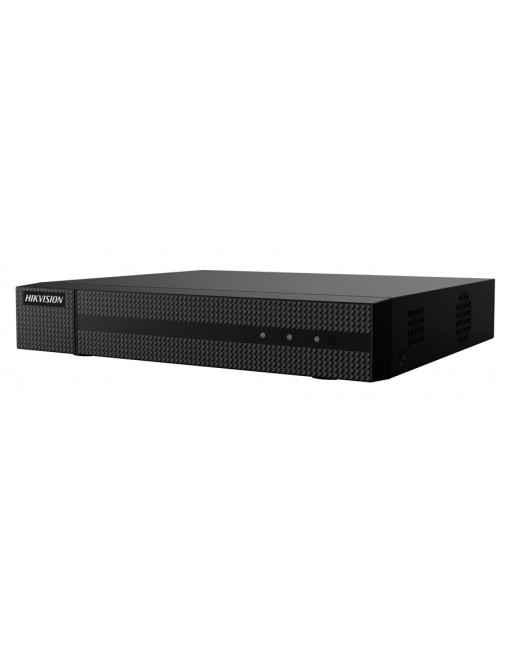

HIKVISION DVR καταγραφικό HiWatch HWD-6116MH-G2, H.265+, 16 κανάλια
Υβριδικό DVR καταγραφικό 5 σε 1 (HDTV, AHD, CVI, CVBS, IP video input) της σειράς HiWatch από την HIKVISION. Υποστηρίζει έως και 16 αναλογικά κανάλια ή 24 κανάλια IP, κωδικοποίηση βίντεο H.265+ και HDD έως 10ΤΒ.
-H.265 Pro+/H.265 Pro/H.265 video compression
-HDTVI/AHD/CVI/CVBS/IP video input
-Up to 16-ch analog video input or 24-ch IP camera input
-Up to 4MP resolution for recording
-Max. 800 m for 1080p and 1200 m for 720p HDTVI signal
-Up to 10 TB capacity per HDD
-Support Turbo HD video input
-Two-way audio
-HDMI & VGA output
-Multi-channel synchronous playback
-High definition real-time recording
-Live view from smart device or Internet
-Easy smart search for motion event during playback
-Hik-connect P2P function for easy remote management
Τεχνικά χαρακτηριστικά
Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog video input: 16-ch
HDTVI input: 4MP, 1080p/25fps, 1080p/30fps, 720p/25fps, 720p/30fps
AHD input: 4MP, 1080p/25fps, 1080p/30fps, 720p/25fps, 720p/30fps
HDCVI input: 4MP, 1080p/25fps, 1080p/30fps, 720p/25fps, 720p/30fps
CVBS input: Support
IP video input: 8-ch (up to 24-ch)
Audio compression: G.711u
Audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ), 16-ch via coaxial cable
HDMI/VGA output: HDMI: 1-ch, 4K (3840x2160)/30Hz, 2K (2560x1440)/60Hz, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz, VGA: 1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Encoding resolution:
-When 4MP Lite mode not enabled: 4MP/4MP Lite/1080p/720p/WD1/4CIF/VGA/CIF
-When 4MP Lite mode enabled: 4MP lite/1080p lite/720p lite/WD1/4CIF/VGA/CIF
-When 1080p Lite mode not enabled: 4MP/1080p/720p/WD1/4CIF/VGA/CIF
-When 1080p Lite mode enabled: 4MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF
Main stream Frame rate:
-For 720p stream access: 720p/VGA/WD1/4CIF/CIF @25fps (P)/30fps (N)
-When 4MP Lite mode not enable: For 4MP stream access: 4MP @8fps, 4MP lite/1080p/720p/WD1/4CIF/VGA/CIF @15fps (N)
-When 4MP Lite mode enabled: For 4MP stream access: 4MP lite @15fps, 1080p lite/720p lite/VGA/WD1/4CIF/CIF @25fps (P)/30fps (N)
-When 1080p Lite mode not enabled: For 1080p stream access: 1080p/720p @15fps, VGA/WD1/4CIF/CIF @25fps (P)/30fps (N)
-When 1080p Lite mode enabled: For 1080p stream access:1080p lite/720p lite/VGA/WD1/4CIF/CIF @25fps (P)/30fps (N)
Sub-stream Frame Rate: WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate: 32 Kbps to 6 Mbps
Audio output: 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate: 64 Kbps
Dual stream: Support
Stream type: Video, Video & Audio
Synchronous playback: 16-ch
Remote connections: 128
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
SATA Interface: 1 SATA interface
Hard Disk Capacity: Up to 10 TB capacity for each disk
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Network interface: 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB interface: Rear panel: 2x USB 2.0
Power supply: 12 VDC
Consumption (without HDD): ? 20 W
Working temperature: -10°C to +55°C
Working humidity: 10% to 90%
Dimensions (W x D x H): 260 x 222 x 45 mm
Περιεχόμενα συσκευασίας
DVR καταγραφικό
Ενσύρματο ποντίκι
Αντάπτορας τροφοδοσίας
Καλώδια σύνδεσης
Βίδες
Εγχειρίδιο χρήσης
